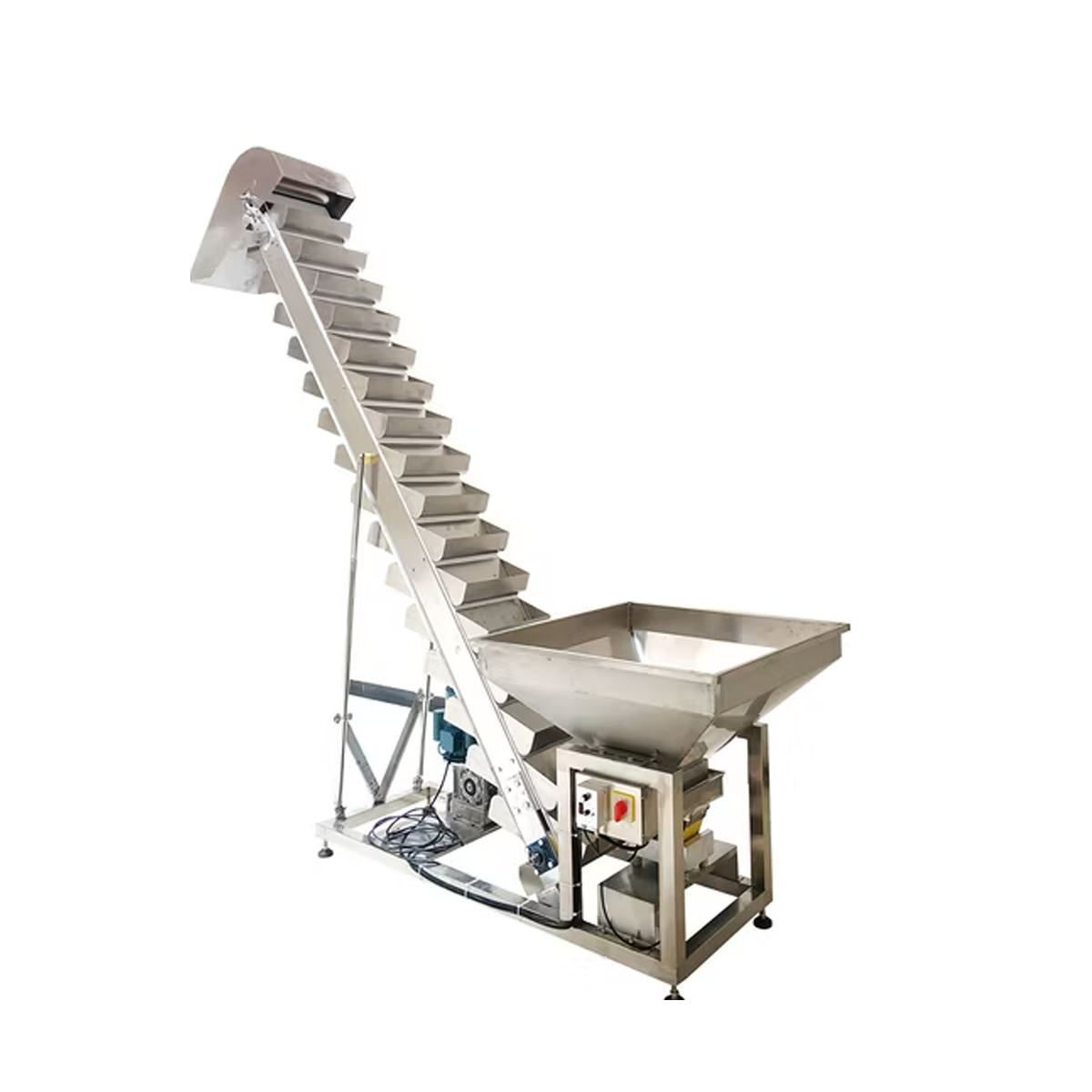

Bucket Elevator Conveyor

The bucket elevator works on a simple yet efficient vertical conveying principle.

1. Bulk material enters the boot section at the bottom of the elevator.

2. Buckets attached to a belt or chain scoop up the material.

3. The motor drives the belt or chain, lifting the buckets vertically.

4. When the buckets reach the top section, they rotate around the head pulley.

5. The material is discharged into a chute or receiving container by gravity or centrifugal force.

After discharge, the empty buckets return downward to collect more material, creating a continuous lifting cycle.

High Lifting Capacity

Designed to transport large quantities of materials with high efficiency.

Vertical Material Handling

The system moves materials vertically, saving floor space in industrial facilities.

Heavy-Duty Construction

Built using mild steel or stainless steel for long service life and durability.

Dust-Proof Enclosed Design

The elevator casing prevents dust leakage and protects materials during transport.

Energy Efficient Operation

Requires relatively low power compared to other conveying methods.

Continuous Production Support

Ensures uninterrupted material flow for automated production lines.

Belt Bucket Elevator

Uses a rubber belt to drive buckets and is suitable for light to medium bulk materials.

Chain Bucket Elevator

Uses heavy-duty chains for high-capacity and heavy industrial applications.

Centrifugal Discharge Elevator

Suitable for handling fine and free-flowing materials like grains and powders.

Continuous Bucket Elevator

Designed for fragile materials that require gentle handling.

Bucket elevator conveyors are widely used across various industries.

Food Processing Industry

• Grain and flour handling

• Sugar and salt conveying

• Seed processing

Mining and Mineral Industry

• Coal handling

• Iron ore transport

• Limestone conveying

Cement and Construction Industry

• Cement powder handling

• Sand and aggregate lifting

Chemical and Fertilizer Industry

• Chemical powder transport

• Fertilizer granules handling

These conveyors are ideal for powder, granular, and small bulk materials such as cement, grains, sand, coal, and ore.

A typical bucket elevator consists of several important components:

• Buckets or hoppers

• Conveyor belt or chain

• Electric motor and drive system

• Head pulley or sprocket

• Boot section (material intake)

• Discharge chute

• Steel casing structure

• Tensioning system

Each component works together to ensure smooth, reliable vertical material transport.

Specifications may vary depending on material type, plant layout, and production capacity requirements.

✔ Efficient vertical material transport
✔ High conveying capacity
✔ Compact design with small footprint
✔ Reduced material spillage
✔ Dust-free enclosed operation
✔ Suitable for continuous industrial operation

Bucket elevators are commonly used because they combine high capacity with space-saving vertical design, making them ideal for modern industrial plants.

Kosmo Engineering offers custom-designed bucket elevator conveyors tailored to your production process.

Customization options include:

• Different bucket sizes and materials

• Belt or chain drive options

• Variable speed control systems

• Stainless steel food-grade construction

• Automated control panels

• Custom lifting heights and capacities

Our engineers design systems that integrate seamlessly into existing production lines and improve overall plant efficiency.
