Corn Cobs Hammer Mill

Working Principle

The Corn Cob Hammer Mill operates using a high-speed rotor assembly fitted with multiple hammer blades (6mm thick × 50mm wide × 150mm long) mounted across four shafts.
The rotor crushes and pulverizes materials fed through the hopper against a perforated mesh screen located beneath the rotor chamber. The finished powdered material is discharged through mesh holes (6–12 mm size, depending on requirement).

This process ensures uniform particle size reduction while maintaining efficient throughput.

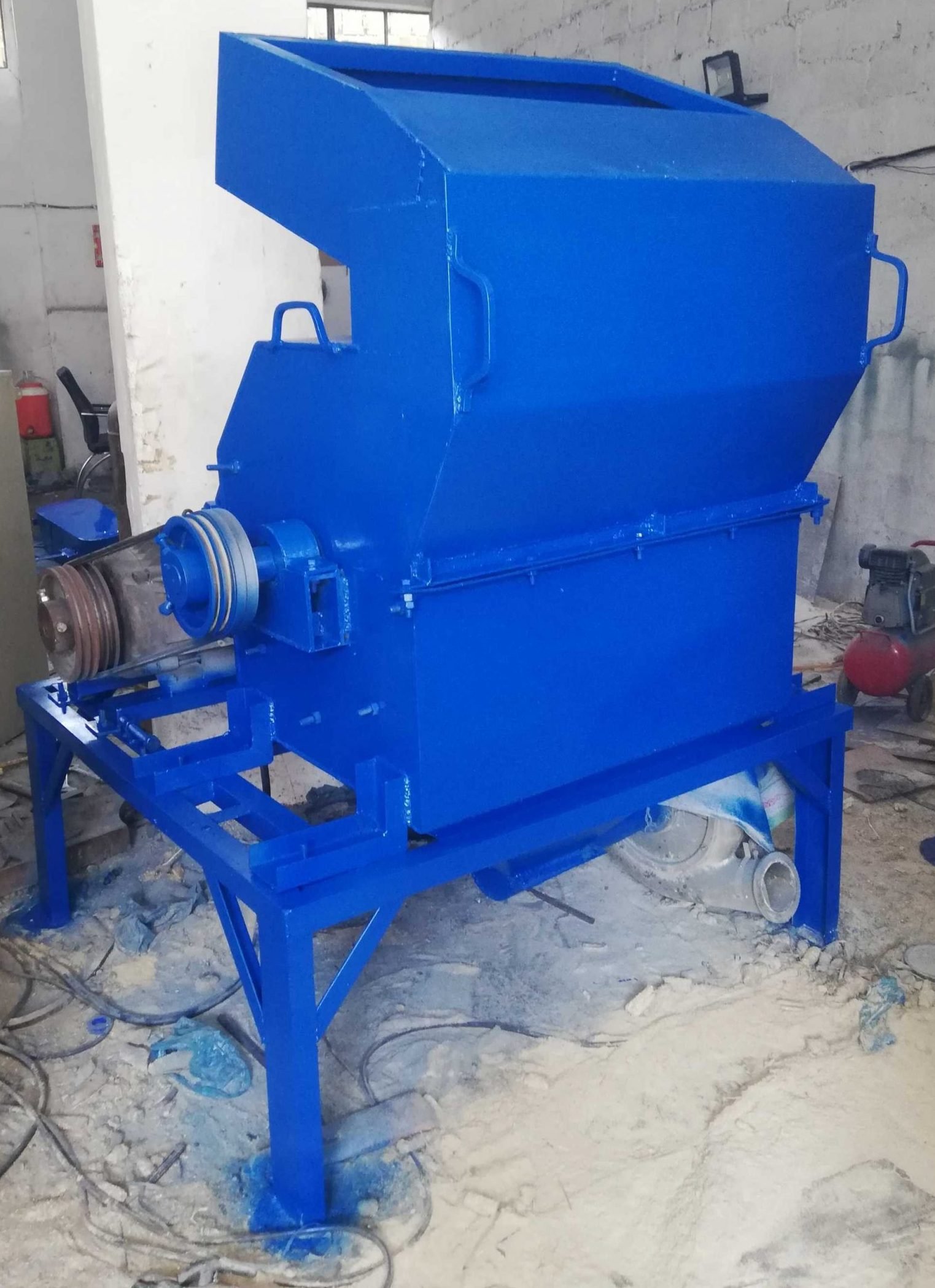

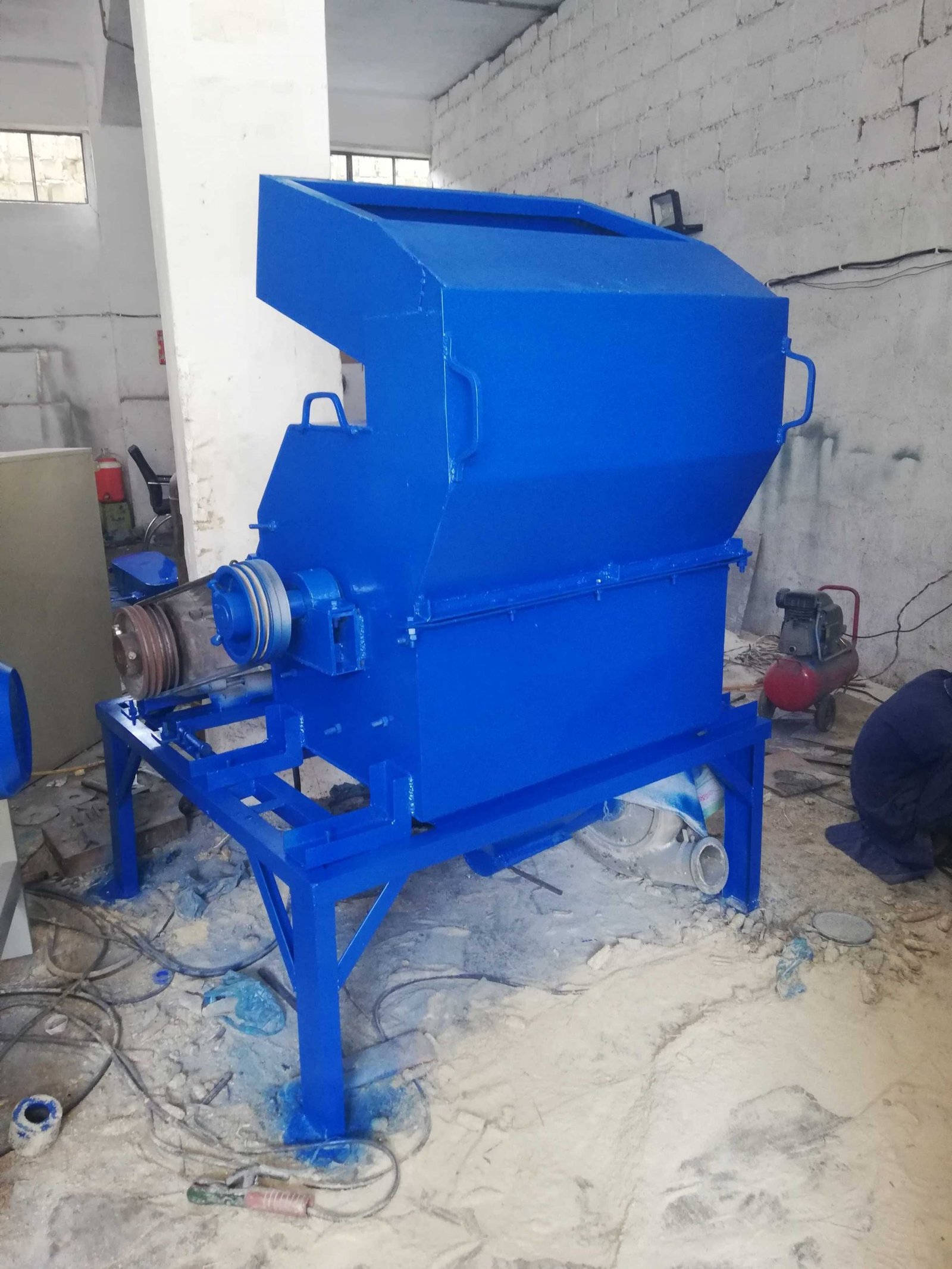

Corn Cobs Hammer Mill – Powder Making Machine

The Corn Cobs Hammer Mill – Powder Making Machine by Kosmo Engineering is a high-performance industrial crusher designed for efficient crushing and grinding of dry organic materials such as corn cobs, wood waste, vegetable waste, and agricultural residues.

Manufactured with a robust mild steel (MS) structure and equipped with a multi-blade hammering rotor, this machine converts solid organic materials into fine powder, suitable for fertilizer production, biomass processing, and industrial recycling applications.

Its durable design, balanced rotor system, and VFD-controlled operation make it an ideal choice for continuous production environments that demand both

Specification	Details
Product Name	Corn Cobs Hammer Mill – Powder Making Machine
Brand	Kosmo Engineering
Material	Mild Steel (MS)
Condition	New Manufactured
Motor Load	3 Phase Motor
Operation	VFD Controlled
Application	Organic Waste, Corn Cobs, Wood Powdering
M.O.Q	1 Unit
Delivery Time	20 Days
Country of Manufacture	Pakistan

Model Number	Motor Power (HP)	Capacity per Hour	Shell Dia × Length
CCHM–150	20 HP	120 – 150 Kg	16″ × 22″
CCHM–200	25 HP	200 – 220 Kg	20″ × 26″
CCHM–500	35 HP	400 – 500 Kg	26″ × 34″
CCHM–1000	50 HP	850 – 1200 Kg	32″ × 40″

Heavy-duty MS body and frame for long service life.
Four-shaft rotor assembly with multiple hammer blades.
Interchangeable mesh screens (6–12mm hole sizes).
Top feeding hopper with controlled inlet design.
VFD control panel for speed and performance adjustment.
Easy folding structure – only base frame is welded; all other components detachable.
Belt-driven mechanism with 4 pulleys for smooth torque transfer.
Emergency stop and safety interlocks included.

Kosmo Engineering’s Hammer Mill Machines are ideal for:

Corn Cobs Powdering (feed or fertilizer preparation).
Vegetable Waste Crushing for organic compost.
Wood Waste & Sawdust Processing.
Fertilizer Manufacturing Units.
Industrial Non-Food Powder Production.
Crushing and grinding of dry organic waste materials.

Apple Hammer Mill Crusher (Food Grade)
Vegetable Hammer Mill Crusher
Rock Salt / Mineral Ore Hammer Crushers
Fitz Mill Crusher
Corn Cob Grinding and Powder Making Machines

Kosmo Engineering, based in Karachi, Pakistan, is a trusted manufacturer of industrial crushers, hammer mills, and powder-making machinery.
Our machines are engineered with precision balance, vibration control, and durability, ensuring efficient crushing, low maintenance, and consistent output for industrial and agricultural applications.
