Pulverizer Pin Mill Grinder (Spices, Herbs, Salt & Stone Grinder)

The Pulverizer Pin Mill Grinder by Kosmo Engineering is a high-speed industrial grinder machine designed for fine grinding of spices, herbs, salt, and stone-based materials.
This robust pin mill delivers consistent powder granulation and is ideal for commercial food processing, chemical, and pharmaceutical industries.

It provides uniform particle size, easy maintenance, and high output capacity, making it one of the most versatile machines for industrial grinding applications.

Kosmo Engineering’s pin mill machines are available in various models depending on the required capacity and output mesh size.
Each unit is engineered for precision grinding performance and can be equipped with a cyclone dust collector system for clean operation.

Model	Motor Power (HP)	Capacity (Kgs/Hour)	Dimensions (L x W x H)
PV–120	15	120 – 200 Kgs	3′ x 3′ x 4′
RM–200	25	200 – 300 Kgs	4′ x 4′ x 5′
With Cyclone	25	150 – 300 Kgs	4′ x 4′ x 7′

Feature	Specification
Material of Construction	Stainless Steel L-304 (Food Grade)
Motor Drive	15–25 HP, Three Phase
Production Capacity	120–300 Kg/Hour
Output Mesh Size	0.5 mm – 10 mm (20–120 mesh)
Optional Attachment	Cyclone Dust Collector System
Operation	Continuous or Batch
Condition	Brand New
M.O.Q.	1 Unit
Country of Manufacture	Pakistan

Fine grinding capability for both soft and hard materials.
Adjustable particle size range from 20 to 120 mesh by changing sieves.
Optional cyclone and dust collection system for clean operation.
High-speed pin impact system ensures efficient powdering.
Built with L-304 food-grade stainless steel for hygiene and durability.
Designed for continuous, low-vibration operation.

Applications of Pulverizer Pin Mill Grinder

The Pulverizer Pin Mill Grinder is used in a wide range of industrial sectors for powdering and particle size reduction, including:

🍃 Food & Spice Industry

Red chili, turmeric, cumin, coriander, and black pepper grinding.
Himalayan pink salt and rock salt powdering.
Herbal powders and flour grinding.
Dry masala, sugar, and grain pulverization.

⚙️ Industrial & Chemical Uses

Grinding chromite and mineral ores into fine powder.
Powdering non-food grade dry materials.
Used as a pin mill in pharmaceutical manufacturing for precise particle control.

Feature	Pin Mill Grinder	Hammer Mill Grinder
Particle Size Control	Finer (20–120 mesh)	Coarser (10–60 mesh)
Output Consistency	Uniform	Variable
Ideal For	Spices, herbs, minerals	Grains, wood, and organic waste
Optional Cyclone System	Yes	Optional
Noise Level	Lower	Higher

Description

Pulverizer Pin Mill Grinder :

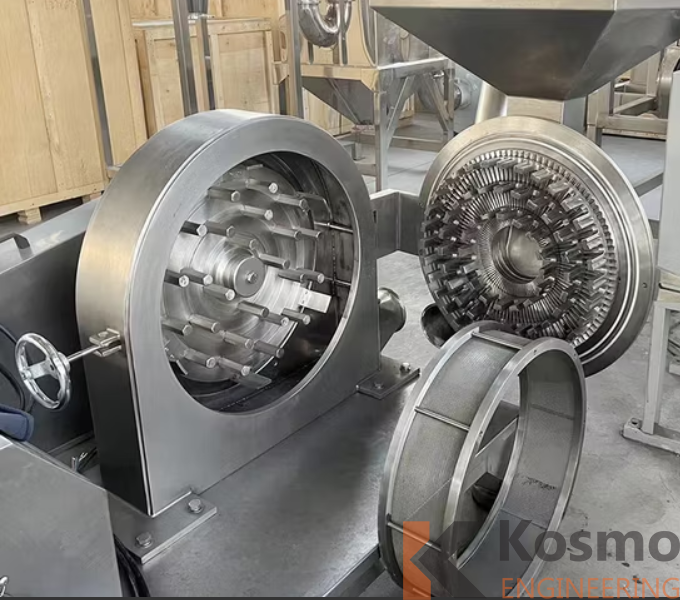

A pulverizer pin mill grinder (also known as a universal pin mill or impact disc mill) is high-speed fine-grinding equipment designed to pulverize brittle, crystalline, fibrous, or heat-sensitive dry materials into fine powders (typically 40 to 300 mesh / 370 to 50 microns).

Unlike hammer mills that rely on free-swinging hammers striking breaker plates, pin mills grind material through high-velocity centrifugal impacts between interlocking rows of hardened steel pins mounted on opposing rotating discs.

Working Principle & Disc Configurations :

Centrifugal Feed: Material is fed axially into the center of the grinding chamber through a hopper or screw feeder.
High-Speed Impact: As the material travels outward toward the perimeter via centrifugal force, it passes through concentric rows of alternating pins spinning at high speeds (up to 6,000+ RPM).
Particle Breakdown: Grinding occurs through repeated high-energy collisions: pin-to-particle, particle-to-particle, and particle-to-housing wall.

Key Technical Specifications & Engineering Features :

Component / Feature	Engineering Detail	Operating Benefit
Pin Metallurgy	Tungsten carbide, hardened SS316, or tool steel pins.	High abrasion resistance against hard or crystalline materials.
Cryogenic Cooling Jacketing	Optional liquid nitrogen injection or water-cooled jacket.	Prevents fat/oil melting (e.g., in cocoa or nutmeg) and heat degradation.
