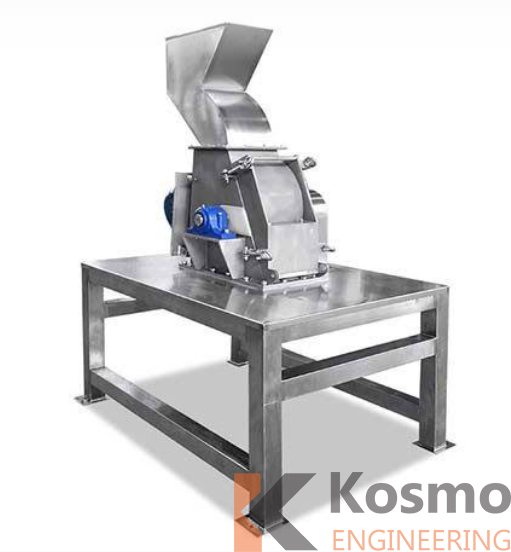

The Vegetables Crusher Hammer Mill operates using a high-speed rotating hammer rotor that pulverizes soft or fibrous materials through impact.
Its inner rotor consists of 4 solid shafts fitted with hammering blades (6 mm thick × 50 mm wide × 150 mm long).
Crushed product passes through a 6 – 12 mm mesh screen, producing consistent granular output.
Power transmission is handled by four industrial V-belts connected via heavy-duty pulleys.
All structural components—including bearing brackets, shafts, rotor plates, and hopper assembly—are easy to fit or remove for quick maintenance.
The unit also includes a control panel with emergency shut-off and an Inverter VFD frequency control system to manage motor RPM according to material type and throughput needs.
Kosmo Engineering manufactures Vegetables Crusher Hammer Mill Machines designed for crushing, hammering, and shredding organic waste materials such as vegetables, fruits, and other biodegradable products.
These machines are ideal for fertilizer production, composting units, and organic recycling plants, ensuring efficient particle size reduction for further processing.
| Sr.No | Model Number | Motor Power (HP) | Capacity (L/hr) | Shell Dia × Length |
|---|---|---|---|---|
| 1 | VHC–3000 | 10 | 2500 – 3000 L/hr | 16″ × 22″ |
| 2 | VHC–5000 | 15 | 5000 – 6000 L/hr | 20″ × 26″ |
| 3 | VHC–10000 | 25 | 8500 – 10000 L/hr | 26″ × 34″ |
| 4 | VHC–20000 | 35 | 18000 – 20000 L/hr | 32″ × 40″ |
| Feature | Specification |
|---|---|
| Material of Construction | Mild Steel / SS L-316 (Food Grade Optional) |
| Operation Type | Continuous Hammer Crushing |
| Motor Type | 3-Phase Industrial Motor |
| Rotor Assembly | 4-Shaft with Hammer Blades |
| Mesh Size | 6 mm – 12 mm (Adjustable) |
| Frame | Arc-Welded Base Frame |
| Control Panel | Equipped with VFD & Emergency Switch |
| Condition | Brand New (Custom Made) |
| Minimum Order Quantity | 1 Unit |
| Delivery Period | 15 – 20 Days |
| Manufactured In | Pakistan |
Crushing of vegetable and fruit waste for compost and fertilizer production.
Organic waste management for recycling facilities and farms.
Preparation of non-food-grade pulp for industrial or agricultural use.
Size reduction of bio-mass materials for further drying or granulation.
Apple Hammer Mill Crusher
Rock Salt / Ore Hammer Crusher
Corn Cob Crusher / Powder Making Machine
Fitz Mill Crushers
Heavy-duty design for continuous industrial use.
Adjustable mesh for customized particle size.
Easy maintenance and quick disassembly for cleaning.
VFD-controlled motor for variable speed operation.
Made in Karachi, Pakistan with nationwide delivery and after-sales support.
A vegetable pulper /Hammer Mill Crusher (or vegetable pulper-finisher) is industrial processing equipment designed to extract pulp, juice, or puree from soft and hard vegetables while automatically separating seeds, skins, stems, and heavy fibers.
Pulp Separation: Centrifugal force drives the smooth vegetable puree and juice through screen perforations (typically 0.5 mm to 2.5 mm) into the main discharge outlet.
Waste Ejection: Tough skin fragments, seeds, fibers, and stems remain inside the screen cylinder and are conveyed forward out a separate refuse chute.
Feeding: Whole or pre-washed vegetables (e.g., tomatoes, carrots, ginger, potatoes, onions) enter via a top-mounted hopper.
Impact & Shearing: High-speed spinning rotors fitted with heavy steel hammers (blunt for soft produce, serrated/sharp for tough roots) strike the incoming produce at 1,400 to 2,800 RPM.
Breaker Plate Interaction: The vegetables are crushed between the rotating hammers and stationery anvil/breaker plates lining the chamber walls.
Discharge: The crushed vegetable pomace passes through a bottom discharge grid or slot plate directly into a pump inlet, pulper feed hopper, or collection vessel.
