Kosmo Engineering manufactures a wide range of vibrating screen models to suit different capacities, bulk densities, and powder characteristics. Each unit can be customized according to the client’s application requirements, ensuring optimal performance, reliability, and product quality.

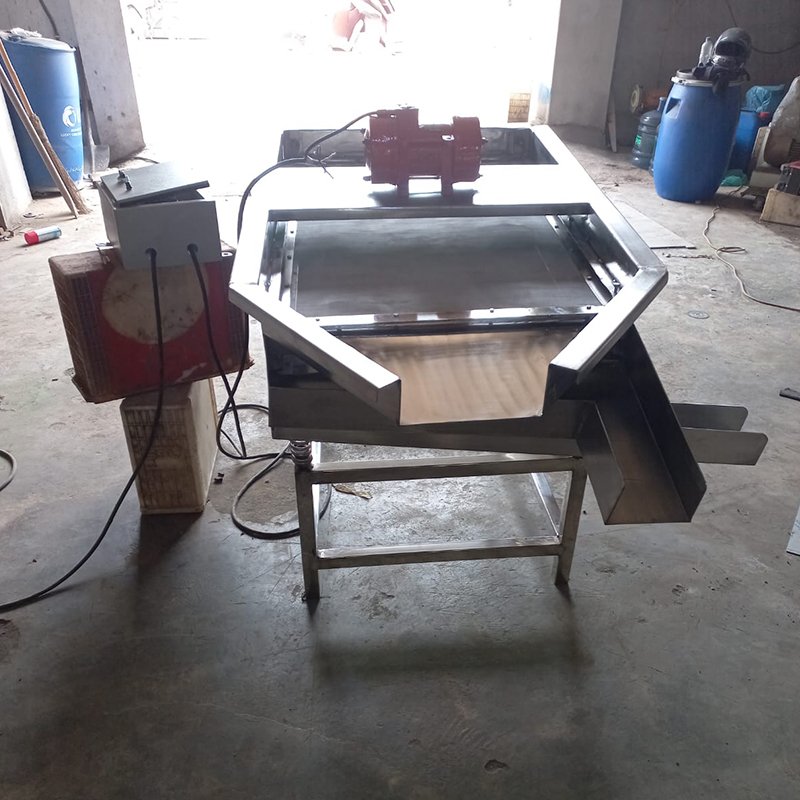

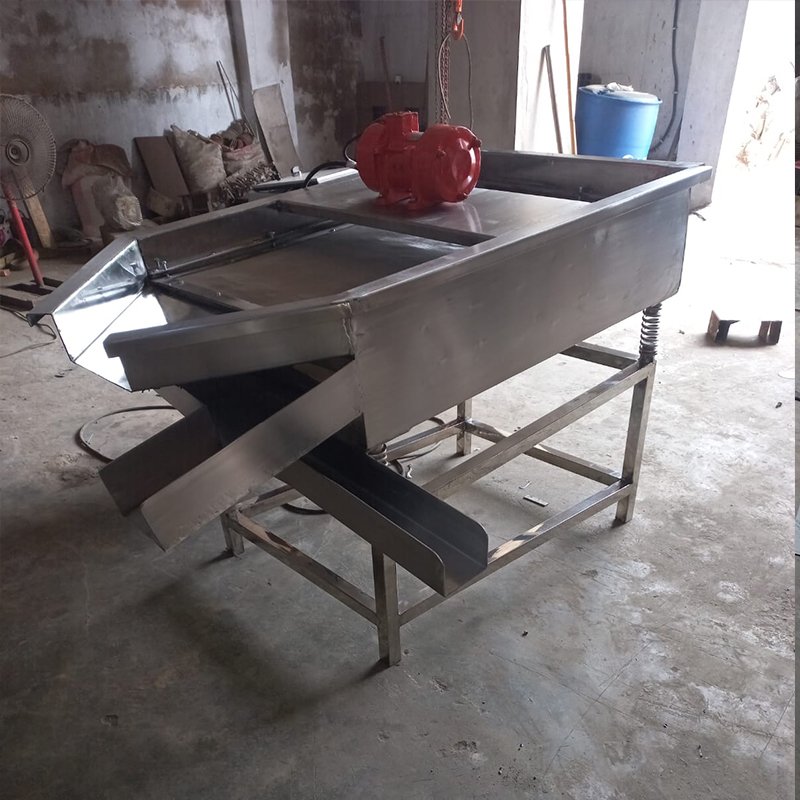

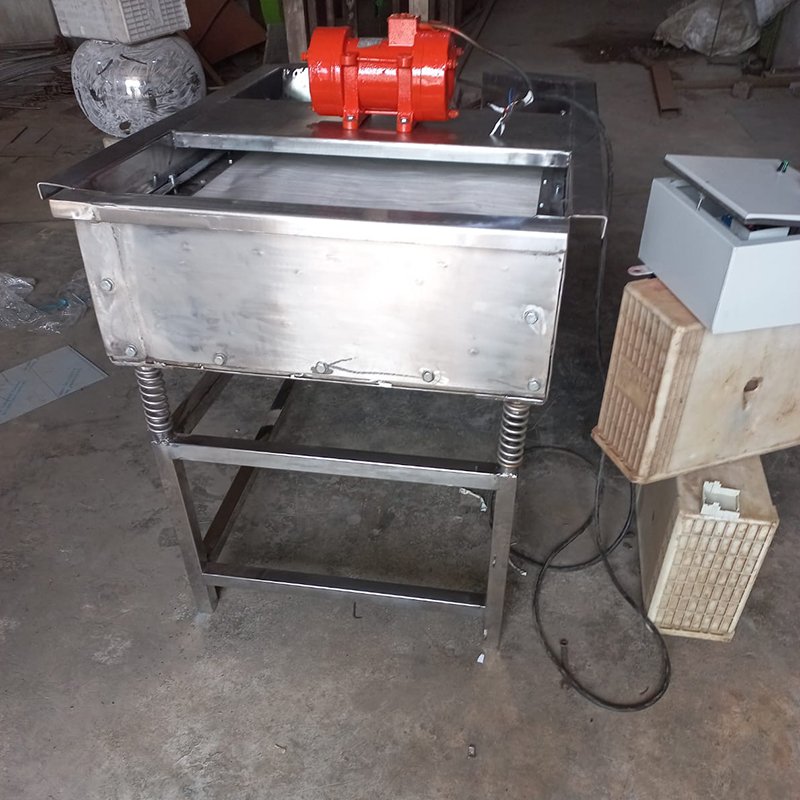

Linear Sifter Vibrator
Kosmo Engineering’s Linear Vibro Sifter is a compact yet powerful unit that operates on a linear vibration mechanism. The product is evenly distributed over multiple sieving decks, moving forward through vibration and gravity. Each mesh layer captures particles according to their size, ensuring consistent and accurate separation.
This makes it an ideal choice for food, pharmaceutical, chemical, and mineral industries requiring high-precision sieving and contamination-free output.
Linear vibrating separators, also known as linear vibro sifters, function as precision particle separators. Based on mesh size, particles easily pass through the appropriate screen.
When any dry powder product is fed onto the top of the sifter, it moves forward under the influence of vibration, gravity, and the machine’s linear motion. As the material travels, it passes through multiple mesh layers, each designed to allow only particles that match its specific opening size.
This process efficiently separates the product into micro and macro fractions, ensuring uniform grading and high-quality output.
Linear Vibro Sifter Different Models & Capacities:Â
| Sr.No | Model Number | Power (HP) Motor Drive | Capacity in Kgs/Hour | L x W x H |
|---|---|---|---|---|
| 1 | LV–300 | 1 | 300 – 500KGS / Hour | 4’x4’x6’ |
| 2 | LV-500 | 1 | 500 – 1000 KGS / Hour | 8′ x 3′ x 3′ |
| 3 | LV-1000 | 2 | 1000 – 1500KGS /Hour | 10′ x 4′ x 4′ |
Â
Linear Sifter Vibrator Separators That We Are Manufacturing:
-Linear Vibrator Sifter Separator.

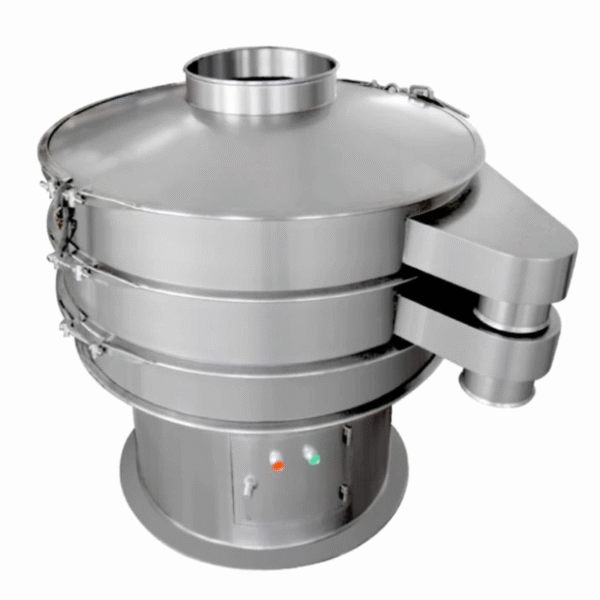

-Round Vibro Sifter Screener.
Mesh Sizes We Can Use :
-80mesh, 70mesh, 50mesh, 40mesh, 30mesh
-200 mesh Sieves,100 mesh sieves 60 mesh sieves and many more.
Applications Of Linear Sifter:
Our Sifter Vibrator are being used in following industries.
-Flour and brand separating, Corn flour sifter, Starch Screener
-industrial vibrating sieves for Himalayan Salt Separator. Spices powder Screener.
-Metal sand sifter machine , vibrating grizzly screen, Commercial sand Sifter, ore sifter machine, iron ore screener, mineral screening, ultrasonic vibrating screen, gravel screener
-compost screening machine, scalping screener, portable screener , mobile crushing and screening plant and many more industrial uses.
Contact Kosmo Engineering Representatives For Vibrating Screening Machine Price.
Description
Linear Sifter Vibrator:
A linear sifter vibrator (also known as a linear vibrating screen or linear vibratory separator) is high-capacity processing equipment used to classify, scalp, de-dust, and grade dry bulk powders, granules, and pellets.
Working Principle: Dual Motor Drive
-
Dual Excitation Motors: Two identical vibration motors are mounted on the screen body at equal angles relative to the screen surface.
-
Synchronous Counter-Rotation: The motors rotate synchronously in opposite directions. The centrifugal forces generated by the eccentric weights cancel each other out in the transverse direction and add together in the longitudinal direction.
-
Linear Trajectory: This concentrated force impels the entire screen box to vibrate along a straight line. Material fed onto the screen mesh is thrown upward and forward in a series of fast linear hops, separating undersized particles through the mesh while conveying oversized particles to the discharge end.
Linear Sifter vs. Circular Vibro Sifter :
| Feature | Linear Vibrating Sifter | Circular Vibro Sifter |
| Motion Profile | Straight-line, parabolic forward hops. | 3D tumbling motion (radial + tangential). |
| Screen Shape | Rectangular (long retention/conveying path). | Circular (round decks). |
