Liquid Mixing Tank

Close

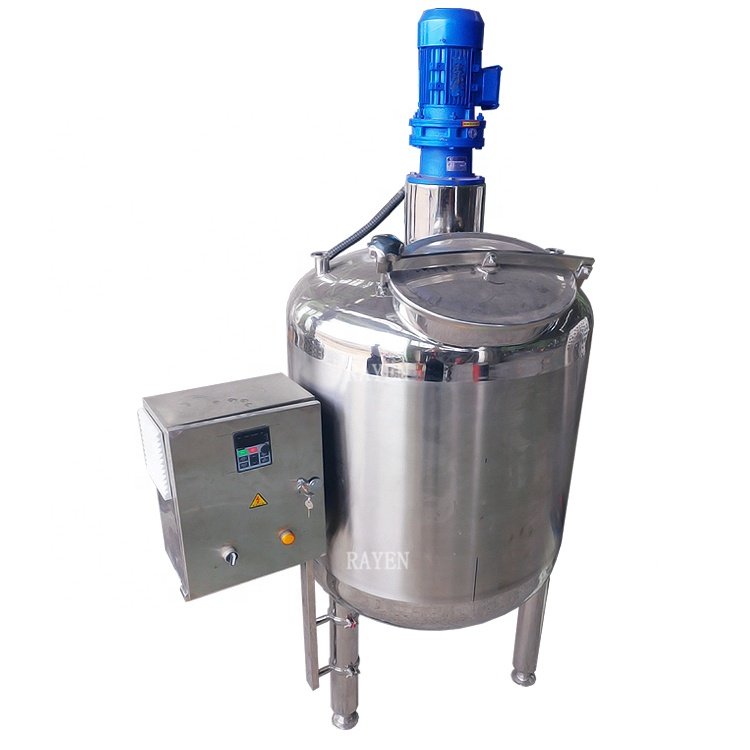

Liquid Mixing Tank

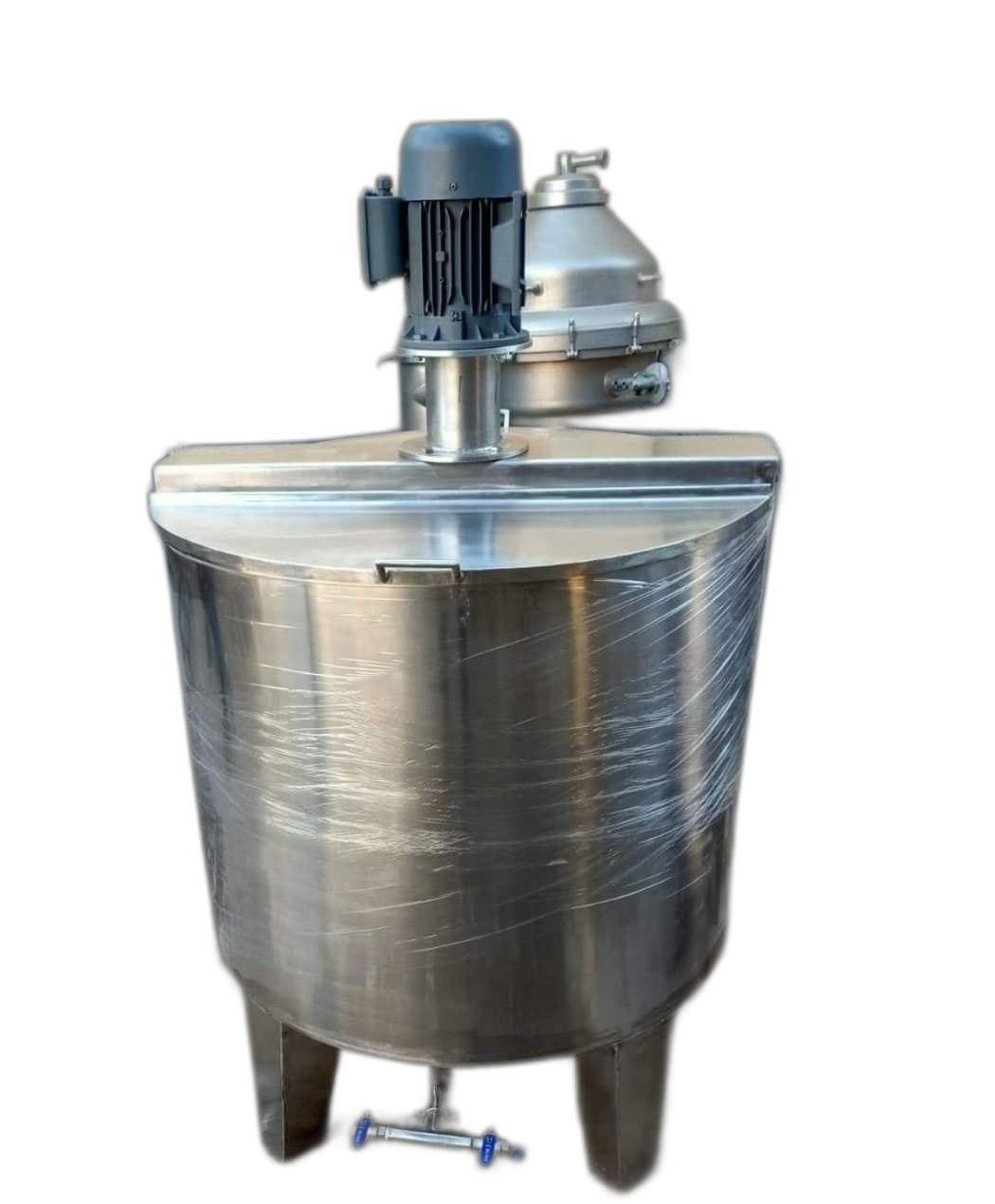

Liquid Mixing Tank - Image 2
Liquid Mixing Tank - Image 3

Liquid Mixing Tank

Custom Manufacturing & Delivery

All Kosmo Engineering Liquid Mixing Tanks are made-to-order based on client specifications — including capacity, process type, and finish requirements.
We proudly deliver to all major cities across Pakistan including Karachi, Lahore, Faisalabad, Multan, Islamabad, Sukkur, and Hyderabad.

Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Product ID: 7165

Liquid Mixing Tank (Double Jacketed Vessels)

Kosmo Engineering manufactures industrial-grade stainless steel liquid mixing tanks designed for high-performance liquid blending, homogenizing, and storage applications.
These double jacketed vessels are ideal for food, beverage, pharmaceutical, and chemical industries, offering reliable heating, cooling, and uniform mixing results.

Each unit is custom-engineered to meet specific process needs, available in static, variable-speed, and agitated configurations — ensuring precise control and hygienic production.

Model Gearmotor Power (HP) Capacity (Liters) Dimensions (Dia × Height)
AT–250 2 HP 250 – 300 L 2′ × 4′
AT–500 3 HP 500 – 600 L 3.2′ × 4′
AT–1000 5 HP 1000 – 1200 L 5′ × 5′
AT–1500 5 HP 1500 – 1650 L 5′ × 7′
AT–2000 7.5 HP 2000 – 2200 L 5.5′ × 7′
AT–5000 10 HP 5000 – 5200 L 6.5′ × 7′
Feature Specification
Material of Construction Stainless Steel L-316 / L-304 (Food Grade)
Design Type Double Jacketed / Single Jacket Optional
Motor Drive 2 – 10 HP Gearmotor
Mixing Type Variable Speed / Agitated / Static
Heating & Cooling System Steam, Hot Water, or Chilled Water
Capacity Range 250L – 5200L
Surface Finish Mirror Polished / Matt Finish
Tank Type Vertical Cylindrical / Conical Bottom
Condition Brand New (Custom Built)
Country of Manufacture Pakistan

  • High-speed homogeneous liquid mixing for food and chemical formulations.

  • Available with double jacketed heating and cooling system for temperature control.

  • Built from non-oxidizing stainless steel for hygiene and easy sterilization.

  • Variable speed agitator ensures uniform blending and emulsification.

  • Custom-built capacities to match your production requirements.

  • Optional pressure and vacuum configurations for specialized processes.

  • Low maintenance, durable design with sanitary fittings and CIP compatibility.

Applications of Liquid Mixing Tanks

The Liquid Mixing Tanks by Kosmo Engineering are designed for a wide range of liquid processing operations, including:

🥭 Food & Beverage Industry

  • Juice, pulp, and syrup mixing.

  • Ice cream base and milk homogenization.

  • Cooking kettle applications and flavor blending.

⚗️ Pharmaceutical & Chemical Industry

  • Emulsification of creams and syrups.

  • Mixing of adhesives, paints, and dyes.

  • Refractory and cement slurry blending.

  • Chemical and detergent mixing applications.

Types of Liquid Mixing & Storage Tanks We Manufacture

  • Silverson-type High-Shear Liquid Mixing Tank

  • Fixed Agitator Mixers (SS/MS Reactor Tanks)

  • Liquid Storage Tanks with or without stirrers

  • Double Jacketed Agitation & Heating/Cooling Tanks

  • Pri-Mix Vessels

  • Cooking Kettles

  • Pressure Vessels & SS Reactors

  • Liquid Nitrogen Storage Tanks



Description

Jacketed Liquid Mixing Tank :

A liquid mixing jacketed tank (also known as a jacketed mixing vessel or jacketed reactor) is an industrial process vessel engineered to simultaneously blend liquid-to-liquid or solid-to-liquid ingredients while delivering precise thermal control (heating or cooling).

By combining a top-entry agitator with a dual-wall jacketed vessel, these tanks prevent temperature fluctuations, maintain product viscosity, and ensure homogenous mixing without localized scorching or chilling.

How It Works :

  1. Agitation & Homogenization: The drive motor turns an internal shaft equipped with specialized impellers (e.g., anchor, turbine, or propeller) to maintain continuous fluid motion, prevent phase separation, and enhance heat transfer rates.

  2. Thermal Circulation: A heating medium (steam, hot water, or thermal oil) or cooling medium (chilled water or glycol) circulates through the sealed outer jacket space.

  3. Indirect Heat Transfer: Thermal energy conducts evenly across the inner stainless steel shell wall, raising, lowering, or holding the liquid batch at a specific target temperature.

Heating & Cooling Jacket Types :

Jacket Configuration Construction & Pressure Capability Best Application
Conventional Full Jacket An outer shell enclosing the inner vessel with a simple open flow channel. Low-pressure heating or cooling on smaller tanks (<2,000 L).
Dimple Jacket Welded spot-matrix pattern providing high structural strength with thinner gauge steel. High-pressure steam heating; cost-effective for medium to large vessels.
Half-Pipe Coil Jacket Half-pipe tubing welded spirally around the vessel exterior in single or multiple zones. High-pressure, high-velocity thermal oil or glycol circulation; excellent thermal shock resistance.
